Description
The SW-10TR-4 Pipe Welding Rotator has a 300 – 2000 mm diameter & a SWL 10
metric tonne pipe turning
capacity, when combined with at least one Idler unit SW-3TRI-2. It comes with all
the standard Smithweld rotator features.

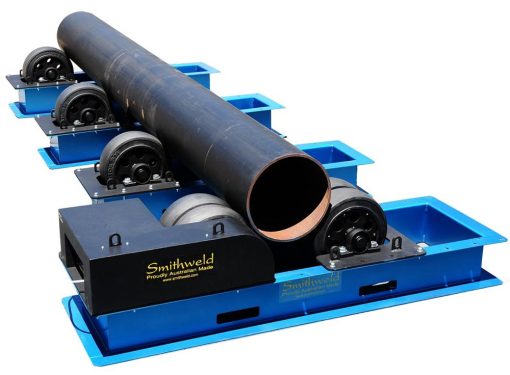

SW-10TR-4 10,000 Kg Pipe Welding Rotator
Specification
• Capacity: 10,000 Kg
• Voltage: 240 VAC 1 ph
• Speed Range: 100 – 600 mm/min
• Overload protection: Current (A), Torque (Nm) & Voltage (V)
Dimensions
External Dimensions
• Frame Length: 240 cm
• Width: 60 cm
• Height: 50 cm
• Weight: 290 Kg main drive
• Weight: 215 Kg idler
