SW-1TR-4 1000 Kg Pipe Welding Rotator

Specification
• Capacity: 1000 Kg
• Voltage: 220 – 240VAC
• Speed range: 0 – 4rpm
• Overload protection: Current (A), Torque (Nm) & Voltage (V)

Dimensions
External Dimensions
• Depth: 540 mm.
• Width: 650 mm.
• Height: 280 mm.
• Drive Weight: 52 Kg
• Idler weight: 14 Kg

Description

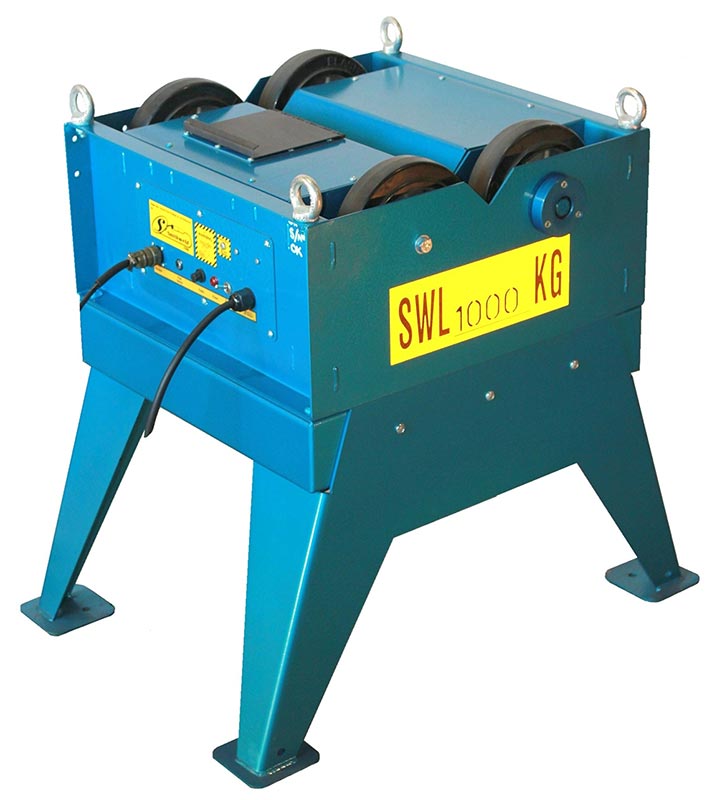

The SW-1TR-4 is a very durable, hard working piece of equipment & one of our
bestselling products over the past 20 years. It has a 50-350 mm diameter & a SWL
1 metric tonne pipe turning capacity when used in combination with at least one

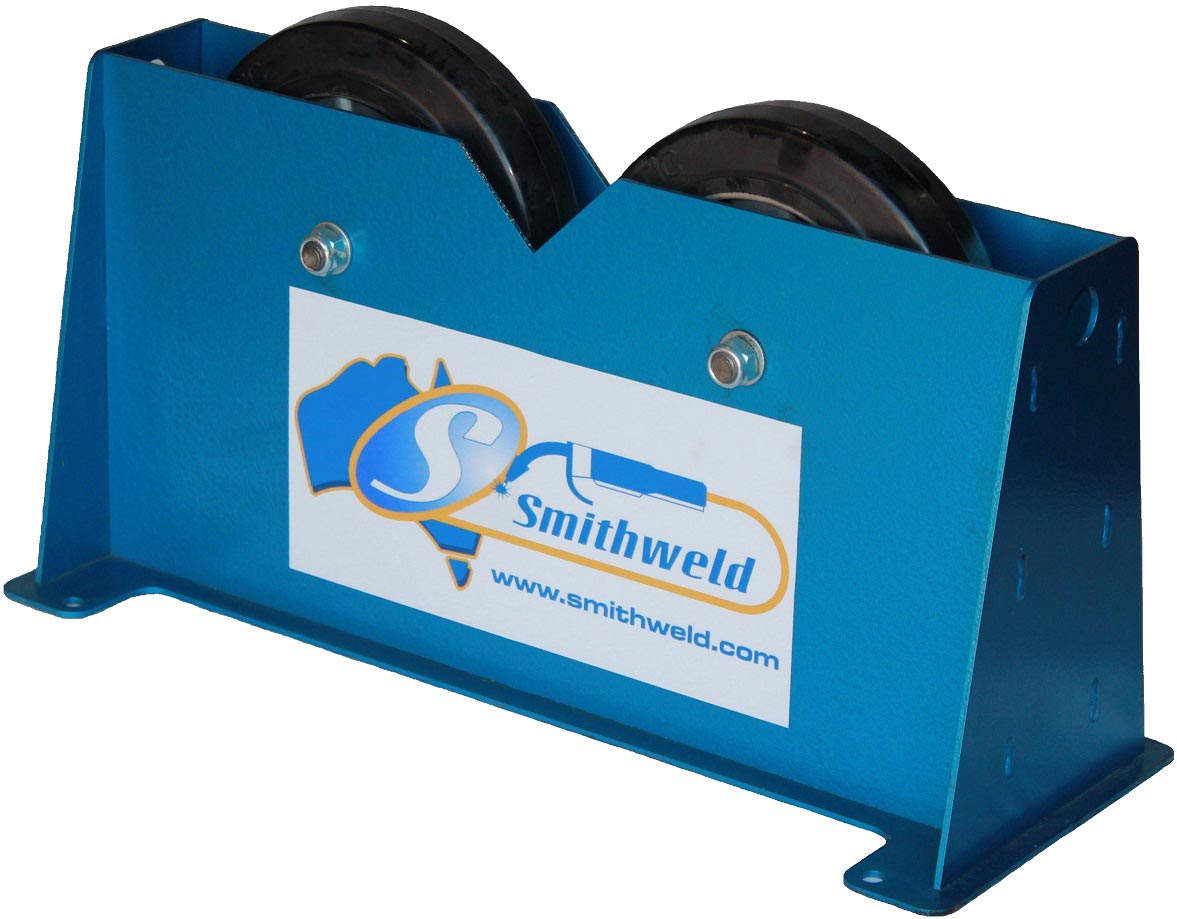

Idler SW-1TRI-2, a digital speed readout, a removable foot/hand control & an
optional elevated base SW-1TR-EB.
