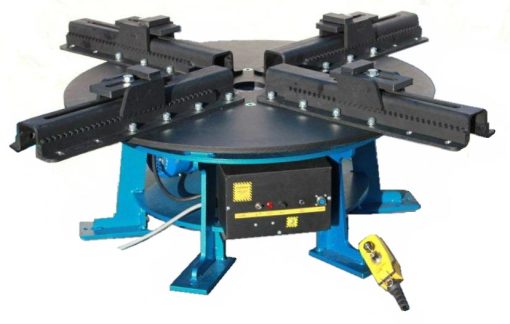

SW-4TFR-1500 4000 Kg – Vertical Pipe Welding Rotator Table

Specification
• Capacity: 4000 Kg
• Voltage: 220 – 240 VAC 1 ph
• Speed Range: 0 – 3 RPM
• Overload protection: Current (A), Torque (Nm) & Voltage (V)

Dimensions
• Depth: 700 mm
• Width: 1500 mm
• Height: 340 mm
• Net Weight: 138 Kg

Description

The SW-4TFR-1500 Vertical Pipe Welding Rotator Table is used for welding & cutting
pipe sections and truck rims in a vertical position. It has a 200 – 1500 mm dia & a
SWL 4 metric tonne, pipe turning capacity. It comes with all the standard Smithweld
rotator features plus a 500 A rotary earth mounted to the drive shaft.
