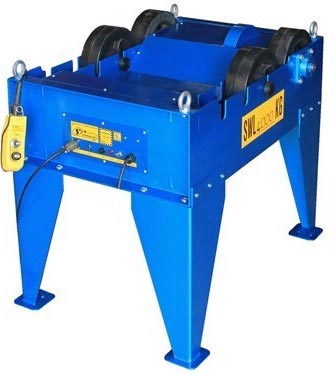

SW-4TR-4 4000 Kg Pipe Welding Rotator

Specification
• Capacity: 4000 Kg
• Voltage: 220 – 240 VAC
• Speed range: 0 – 3 rpm
• Overload protection: Current (A), Torque (Nm) & Voltage (V)

Dimensions
External Dimensions
• Depth: 950 mm
• Width: 800 mm
• Height: 340 mm
• Net Weight: 134 Kg
• Idler Weight: 45 Kg

Description

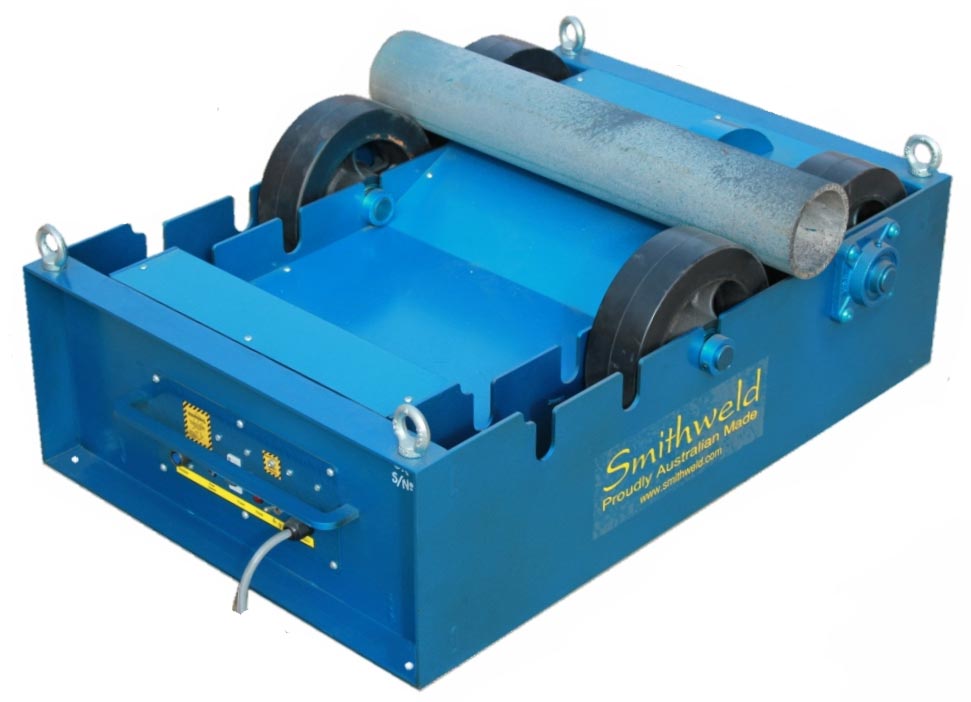

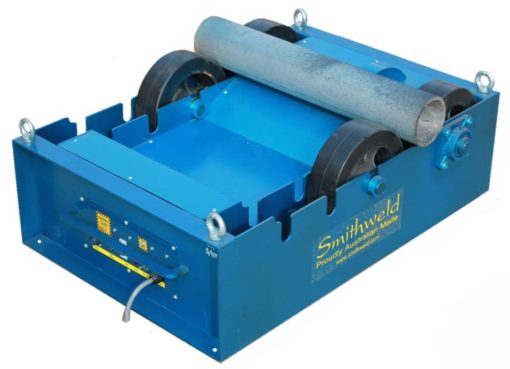

The SW-4TR-4 is the big brother to the SW-1TR-4, with 100-1200 mm pipe turning
capacity and a SWL load capacity of 4 metric tonne when used with at least one
Idler unit SW-1.5TRI-2. It is an extremely durable & reliable piece of equipment. We
advise the use of additional idlers for spans greater than 3m.
