SW-6TR-2 6000 Kg Pipe Welding Rotator

Specification
• Capacity: 6000 Kg
• Voltage: 220 – 240 VAC 1 ph
• Speed range: 100 – 600 mm/min
• Overload protection: Current (A), Torque (Nm) & Voltage (V)

Dimensions
External Dimensions
• Frame Length: 1800 mm.
• Width: 550 mm.
• Height: 340 mm.
• Net Weight: 258 Kg
• Idler Weight: 145 Kg

Description

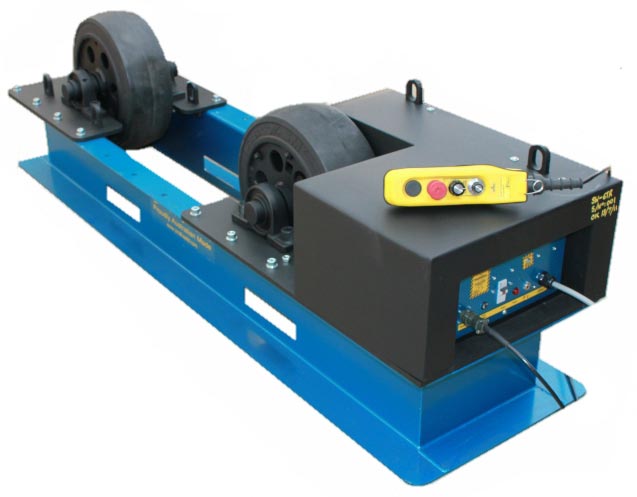

The SW-6TR-2 is the smallest rotator in our heavy tonnage pillar block chassis
mount range. It has a 300 – 2000 mm diameter, a SWL 6 metric tonne pipe turning
capacity, when used in combination with at least one Idler unit SW-3TRI-2. It comes
with all the standard Smithweld features.
