The SW-25TR-6 25,000 Kg Pipe Welding Rotator

Specification
• Capacity: 25,000 Kg
• Voltage: 240 VAC 1 ph
• Speed Range: 100 – 600 mm/min
• Overload protection: Current (A), Torque (Nm) & Voltage (V)

Dimensions
• Main Frame Length: 240 cm
• Width: 86 cm
• Height: 63 cm
• Weight: 630 Kg main drive
• Weight: 350 Kg idler

Description

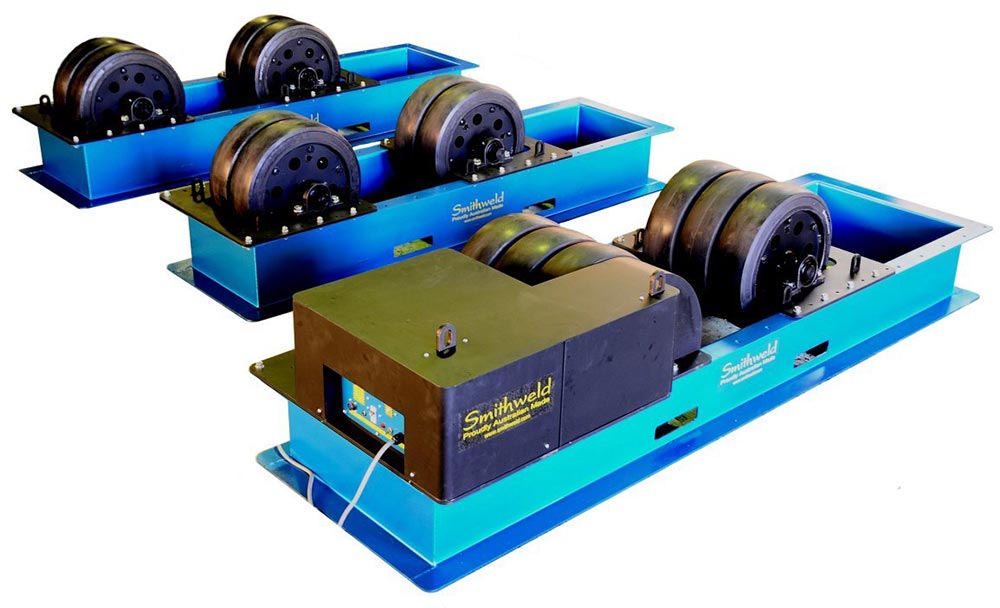

The SW-25TR-6 Pipe Welding Rotator is the largest pillar block chassis mount
rotator in our range. It has a 300 – 3000 mm diameter & a SWL 25 metric tonne pipe
turning capacity when combined with at least three Idler units SW-6TRI-4. It comes
with all standard Smithweld rotator features.
